These are the latest alcohol stoves designed by CiT, the Mutant X (MX) and Pressurized Jet Assisted (PJA) Alcohol Stoves. The MX is an improved open jet stove design to give better fuel efficiency and yet burns like pressurized jet alcohol stove. With the turbo base added, it cuts boiling time by half. These stoves have been tested and are made for proper usage. If you have any quires, please send us email.
If you are interested to know different types of Alcohol Stoves, you can follow this LINK
If you are interested to know different types of Alcohol Stoves, you can follow this LINK
- Use the stove in a ventilated area.
- Store the alcohol either in a plastic or aluminium bottle. Do not use glass bottle as it might break in your pack. Best is to use a medicine bottle, they mostly come with markings.
- Do not pour alcohol when the stove is still burning.
- Alcohol burns invisible, to check if it still burning, use you hand and place above the stove at a distance to feel the heat.
- Do not enlarge any holes of the stove, this action might cause the stove to explode
- Keep the bottled alcohol away from the lighted stove.
- Keep away from children and infant.
Before using the stove, you should have a bottle of alcohol with markings.
CiT MUTANT X (MX) ALCOHOL STOVE
Specification
size: 70 x 70 x 65mm
weight: 15gram
Max capacity: 60ml of alcohol
Material: Aluminium
Burn time: ~22mins
Fuel: 40ml 95% Alcohol
Water: 400cc Titanium Pot
Boil time: ~6mins
Full Boil: ~8mins
CiT MUTANT X TURBO (MXT) ALCOHOL STOVE
Specification
size: 100 x 70 x 95mm
weight: 19gram
Max capacity: 60ml of alcohol
Material: Aluminium
Burn time: ~15mins
Fuel: 40ml 95% Alcohol
Water: 400cc Titanium Pot
Boil time: ~3mins
Full Boil: ~5mins
CiT MUTANT X SUPPORT (MXS) ALCOHOL STOVE (20 Apr 2011)
The MXS Alcohol stove is designed for narrow pots such as Heineken Pot. The stove support can be configured for both wide and narrow pot. The Support can be removed from the stove for storage.
Specification
size: 90 x 70 x 65mm
weight: 28gram
Max capacity: 60ml of alcohol
Material: Aluminium / Steel
Boil time: ~8.30mins (400ml water)
Burn time: 18.30mins (40ml Alcohol)
CiT PRESSURIZED JET ASSISTED (PJA) ALCOHOL STOVE (DISCONTINUED)
Specification
size: 70 x 70 x 65mm
weight: 15gram
Max capacity: 40ml of alcohol
Material: Aluminium
DIY WINDSCREEN
Suggest that you make a windshield for the stove. It can be either made from Soda Can or Aluminium foil. Click here for more information.
STOVES CONSTRUCTION
All CiT stoves are custom hand made, additional tools were purchased to ensure a better quality build, such as thumb nail is replaced with hobby craft drill, 3M fine sanding pad and steel wool to give the stoves mirror finishing, custom made tools and templates to ensure all stoves are equally built. Each stove construction requires 1.5 to 2 manhours.
Material and Tools Used
- Soda cans
- Hobby craft drill
- Marker pens
- Ruler
- Pliers
- Hole punch
- Custom scriber / cutter
- Heavy duty pen knife cutter
- Sand paper 2 different grades
- High temperature RTV silicon
- Flat head screw driver
- SOS pad
- Steel Wool
- Level gauge
- Custom templates
- Battery operated hand drill
CUTTING THE CANS
removing the inner rim of soda can
pierce 3 holes
using a flat head screw driver
rounding off the edges
sand off rough edges
scribing around the can and creating a small slit
separating the can
smooth out rough edges
MAKING THE JETS
hobby craft drill
custom template for marking jet holes
drilling
DIFFUSER AND TURBO BASE
custom template marking
using hole punch
INNER CHAMBER
custom template for marking
PRE-ASSEMBLY
notches made with a pair of pliers
fitting test
SANDING
FINAL ASSEMBLY
high temp. RTV silicon used for all stoves
leveling the stove
final fitting
POLISHING AND TESTING

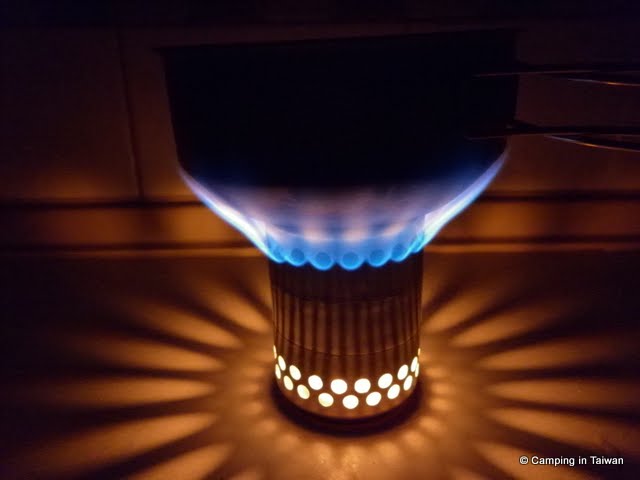

Final Product
a bag full of failures and success
